Kubota V3307-CR Common Rail Injection
PRINT THIS PAGE
AVAILABLE EQUIPMENT MODELS
Engine Series:
07
Engine Model:
V3307-CR
Engine Desc:
V3307-CR-TE4B
Engine Data:
Common Rail Injection
Engine Info:
4 Cyl
Engine Dimensions:
Bore: 3.70 in / 94 mm
Stroke: 4.72 in / 120 mm
- KX080-4 - Mini Excavator
- KX080-4S - Mini Excavator
- KX080-4S2 - Mini Excavator
- KX080-5 - Mini Excavator
- M4-071HDC12 - Tractor
- M4D-061HDC12 - Tractor
- M4D-071HDC12 - Tractor
- M6060HD - Tractor
- M6060HDC - Tractor
- M6060HFC - Tractor
- M7060HD - Tractor
- M7060HD12 - Tractor
- M7060HDC - Tractor
- M7060HDC12 - Tractor
- M7060HFC - Tractor
- SSV75 - Skid Steer
- SSV75C - Skid Steer
- SSV75P - Skid Steer
- SSV75PC - Skid Steer
- SVL75-2 - Compact Track Loader
- SVL75-2c - Compact Track Loader
- TL8 - Compact Track Loader
- TL10 - Compact Track Loader
- TL10V2 - Compact Track Loader
CLOSE
Equipment Models
Kubota
Takeuchi
-
Engine O/H KitKV3307CRT Std. (1) Click to view kit contentKV3307CRT/50 0.50 mm (1) Click to view kit contentCLOSEItem #:Quantity:Description:K1J770-216704PISTON & RING KIT, STDK1G777-234025MAIN BEARINGK1G772-223324CON ROD BEARINGK1G772-23534/441THRUST WASHERK1J770-993521TOP GASKET SETK1J770-993601BOTTOM GASKET SETK1G772-219828BUSHING CON RODCLOSEItem #:Quantity:Description:K1J770-216904PISTON & RING KIT, .50MMK1G777-234025MAIN BEARINGK1G772-223324CON ROD BEARINGK1G772-23534/441THRUST WASHERK1J770-993521TOP GASKET SETK1J770-993601BOTTOM GASKET SETK1G772-219828BUSHING CON ROD -
1) Piston & Ring KitK1J770-21670 Std. K1J770-21690 0.50 mmUse 42) PistonK1J770-21112 Std. K1J770-21902 0.50 mm3) Ring SetK1G772-21050 Std. K1G772-21092 0.50 mm -
Main BearingK1G777-23402 Std. K1G777-23882 0.20 mm K1G777-23892 0.40 mmUse 5 Pairs -
Con Rod BearingK1G772-22332 Std. K1G772-22972 0.20 mm K1G772-22982 0.40 mmUse 4 Pairs -
Thrust WasherK1G772-23534/44 Std.Set of 2 Pairs -
1) Front SealK1C020-041402) Rear SealK1G772-044603) CrankshaftK1G777-23010 (2)4) Oil Pump Drive GearK1G772-35630 -
1) Top Gasket SetK1J770-99352 (1)2) Bottom Gasket SetK1J770-993603) Head GasketK1J783-03310 2 notch K1J783-03600 1 notch K1J783-03610 0 notch4) Rocker Cover GasketK1G772-14520 -
1) Bushing, Con RodK1G772-21982 x82) Bolt, Con RodK1G772-22140 x83) Connecting RodK1G772-22013 -
1) TappetK1G772-15550 x82) PushrodK1G772-15110 x83) Camshaft -
1) ThermostatK1C011-730102) Gasket, Thermostat
Valve Section
-
Valve, Intake
-
Valve, Exhaust
-
Guide, IntakeGuide, Exhaust
-
Spring, ValveSeal, ValveLock, Valve
-

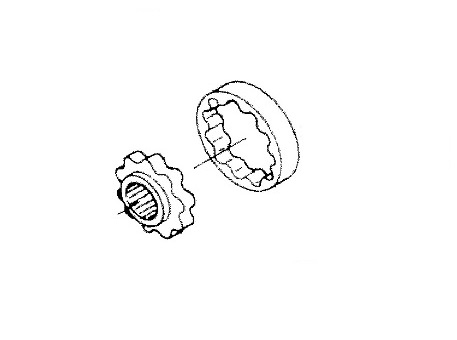

Oil Pump KitK1J951-04225 -
1) Water PumpK1G772-73035 (2)2) Water Pump GasketK1G772-73430 -
1) Repair Sleeve94RS2) TurbochargerK1J773-17013 (2)
(1): Does not include head gasket. Head gasket thickness or notches must be verified and correct head gasket must be purchased separately.
(2): Check application for proper usage
