John Deere 6081 Forged Steel Piston, from ESN 200,000 and up

PRINT THIS PAGE
AVAILABLE EQUIPMENT MODELS
Engine Series: PowerTech
Engine Model: 6081
Engine Desc: 8.1L Tier 2 & Tier 3 from ESN 200,000
Engine Info: 6 Cyl
Engine Dimensions:

Bore: 4.56 in / 116 mm
Pin Ø: 1.8742 in / (+/- .0002) = 47 mm

Con Rod (m): RE535555
Piston (m): DZ114299
    CLOSE
    Equipment Models

    farm tractors

    • 8120
    • 8220
    • 8320
    • 8420
    • 8520
    • 7710
    • 7810
    • 8120T
    • 8220T
    • 8320T
    • 8420T
    • 8520T
    • 7820
    • 7920

    feller bunchers

    • 608S
    • 753G
    • 608L
    • 753GL
    • 608B
    • 703G
    • 759G
    • 753J
    • 753JH
    • 759J
    • 759JH

    excavators

    • 330CLC
    • 370C

    loggers

    • 3554

    motor graders

    • 770D
    • 772D
    • 870D
    • 872D

    harvesters

    • 703JH

    engine model

    • 6081HDW08
    • 6081HDW09
    • 6081HDW13
    • 6081HRW25
    • 6081HRW31
    • 6081HRW32
    • 6081HRW33
    • 6081HRW34
    • 6081HRW41
    • 6081HRW42
    • 6081HRW43
    • 6081HT002
    • 6081HT008
    • 6081HTJ05
    • 6081HTJ06
    • 6081HTJ07
    • 6081HTJ08
    • 6081HZ009
    • 6081HT005
  • Engine O/H Kit
    TDZ114647 Click to view kit content
    CLOSE
    Item #:
    Quantity:
    Description:
    TDZ114645
    6
    KIT, CYL, 6081 PT, STEEL PISTON
    TRE529319
    6
    BRG, MAIN, STD 8.1, 9.0L
    TRE529320
    1
    BRG, THRUST, STD 9.0L
    TR116081
    6
    BRG, CON ROD STD 8.1
    TAR49025
    1
    SEAL, FRONT CRANK, W/SLEEVE
    TRE543639
    1
    SEAL, FRONT CRANK, (INCL. WASHER) 6081/6090
    TRE520036
    1
    SEAL, REAR CRANK, 400 SERIES, PT
    TRE527551
    1
    GASKET, O/H SET, 8.1L TIER 2, 3
    TR74008
    6
    BUSHING, CON ROD, 6.466/6.076/6081/6090
    TR501035
    12
    BOLT, CON ROD, 6081/6090
    TR87561
    4
    BUSHING, CAMSHAFT 6081
    SPEC SHEET - TDZ114647
  • Piston-Liner Kit
    TDZ114645
    Consists of:
    a) TDZ114299 b) TRE503528 c) TR57771 d) TR116236 e) TAR98850 f) TE1343FN
  • Main Bearing
    TRE529319 Std. TRE534181 0.0115
    Use 6
  • Thrust Bearing
    TRE529320 Std. TRE534183 0.0115
    Use 1
  • Con Rod Bearing
    TR116081 Std. TRE57167 0.0115
    Use 6
  • 1) Front Seal
    TAR49025 (5) TRE543639 (5)
    2) Rear Seal
    TRE520036
    3) Crankshaft, Gear
    TR104587
    4) Crankshaft
    TRE535300 (1) TRE534314 (2)
    5) Ring Gear
    TR28811
    6) Rear Gear
    TR63326
  • 1) O/H Gasket Set
    TRE527551 (8)
    2) Head Gasket Set
    TRE527552
    3) Head Gasket
    TRE55475
    4) Oil Pan Gasket
    TR532464 (3) TR520844 (4)
    5) Rocker Cover Seal
    TR502598 TR502719
  • 1) Bush, Con Rod
    TR74008 x6
    2) Bolt, Con Rod
    TR501035 x12
    3) Bushing, Cam
    TR87561 x4
    4) Con Rod
    TRE535555
  • 1) Plug, Camshaft
    TR82007
    2) Oil Cooler
    TAR55394
    3) Tappet
    TR110126 x12
    4) Tensioner, Belt
    TRE518097 (6) TRE68715 (6) TRE57498 (6)
    5) Head Bolt Kit
    TRE506501
    6) Camshaft
    TR120872
    7) Camshaft Kit
    TRE57054 (7)
  • 1) Pump, Water
    TRE521502
    2) O'ring Mount Kit
    TRE509463
    3) Water Pump Cover Gasket
    TR119383
Valve Section
  • Valve, Intake
    TR84618 Std.
    TR93308 0.003
    TR93312 0.015
  • Valve, Exhaust
    TR84619 Std.
    TR93311 0.003
    TR93313 0.015
  • 1) Insert, Valve In
    TR121193 Std.
    2) Insert, Valve Ex
    TR119132 Std.
  • 1) Cap, Valve
    TT20129
    2) Lock, Valve
    TT20077
    3) Shield, Valve
    TR501640 x6
  • Spring, Valve
    TR502187
  • 1) Thermostat
    TAR48675 180° F
    2) Thermostat Housing Seal
    TR136063
    3) Thermostat Cover
    TRE502569

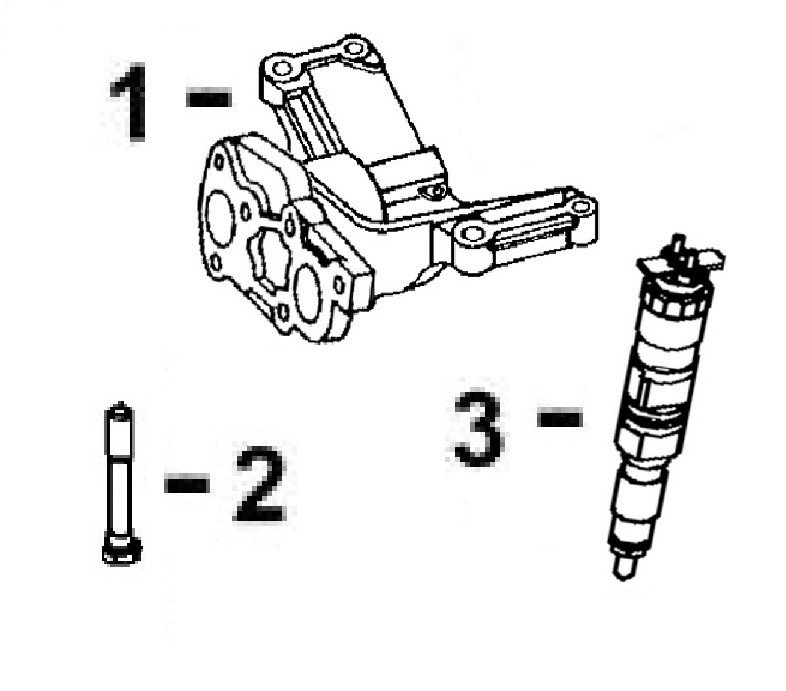

  • 1) Oil Pump
    TRE60622
    2) Main Bearing Cap Bolt
    TR519287 x14
    3) Injector
    TRE524363 x6 (6)
  • 1) Oil Pressure Sensor
    TRE167207 (6)
    2) Water Temp Sensor
    TRE52722 (6)
    3) Crankshaft Sensor
    TRE519144 (6)
    4) Temperature Sensor
    TRE522823 (6)
(1): With helical oil pump drive gear. Do not use with HPCR fuel system.
(2): With straight oil pump drive gear.
(3): Paper Gasket.
(4): The TR520844 is the metal/rubber oil pan gasket, that is used on the applications were the oil pan is part of the frame. It is not included in the full gasket or the overhaul kits.
(5): Both Front Seal are included in the Kit.
(6): Check application for proper usage.
(7): Contains TR120872 x 1 and TR110126 x 12.
(8): Our gasket sets do not include the front and rear crankshaft seals
(9): Check application for proper usage
